This class implements a 2D texture map. More...

#include <CTexture2d.h>

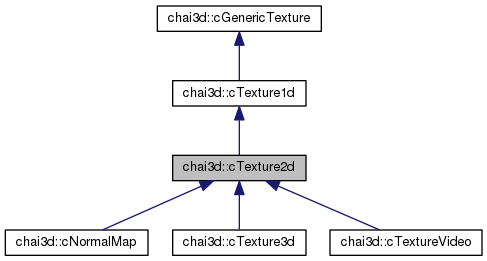

Inheritance diagram for chai3d::cTexture2d:

[legend]

Public Member Functions
	cTexture2d ()
	Constructor of cTexture2d. More...

virtual	~cTexture2d ()
	Destructor of cTexture2d. More...

cTexture2dPtr	copy ()
	This method creates a copy of itself. More...

virtual void	renderInitialize (cRenderOptions &a_options)
	This method enables texturing and sets this texture as the current texture. More...

virtual void	renderFinalize (cRenderOptions &a_options)
	This method disable texture once triangles have been rendered. More...

virtual void	setWrapModeT (const GLint &a_wrapModeT)
	This method set the texture wrap mode of t. More...

GLint	getWrapModeT () const
	This method returns the texture wrap mode of t. More...

Public Member Functions inherited from chai3d::cTexture1d
	cTexture1d ()
	Constructor of cTexture1d. More...

virtual	~cTexture1d ()
	Destructor of cTexture1d. More...

void	setTextureUnit (const GLenum a_textureUnit)
	This method set the texture unit where a_textureUnit is GL_TEXTUREi_ARB, where 0i<GL_MAX_TEXTURE_UNITS_ARB. More...

GLenum	getTextureUnit () const
	This method returns the texture unit value. More...

void	setTextureId (const GLuint a_textureId)
	This method sets the texture ID. More...

GLuint	getTextureId ()
	This method returns the texture ID. More...

cTexture1dPtr	copy ()
	This method creates a copy of itself. More...

virtual bool	loadFromFile (const std::string &a_fileName)
	This method load a texture image from a file. More...

virtual bool	saveToFile (const std::string &a_fileName)
	This method save a texture image to a file. More...

virtual void	markForUpdate ()
	This method marks this texture for GPU update. More...

virtual void	markForDeleteAndUpdate ()
	This method marks this texture for GPU deletion and reinitialization. More...

void	setEnvironmentMode (const GLint &a_environmentMode)
	This method sets the environment mode (GL_MODULATE, GL_DECAL, GL_BLEND, GL_REPLACE). More...

GLint	getEnvironmentMode ()
	This method returns the environment mode status. More...

virtual void	setWrapModeS (const GLint &a_wrapModeS)
	This method set the texture wrap mode of s. More...

GLint	getWrapModeS () const
	This method returns the texture wrap mode of s. More...

void	setMagFunction (const GLint a_magFunction)
	This method sets the magnification function value. More...

GLint	getMagFunction () const
	This method returns the current magnification function value. More...

void	setMinFunction (const GLint a_minFunction)
	This method sets the minification function value. More...

GLint	getMinFunction () const
	This method returns the current minification function value. More...

void	setSphericalMappingEnabled (const bool a_enabled)
	This method enables of disables the spherical mapping mode. More...

bool	getSphericalMappingEnabled () const
	This method returns thestatus of the spherical mapping mode. More...

void	setUseMipmaps (bool a_useMipmaps)
	This method enables or disables the use of mipmaps. More...

bool	getUseMipmaps ()
	This returns the the status of mipmaps. More...

bool	setImage (cImagePtr a_image)
	This method assigns an image to this texture. More...

Public Member Functions inherited from chai3d::cGenericTexture
	cGenericTexture ()
	Constructor of cGenericTexture. More...

virtual	~cGenericTexture ()
	Destructor of cGenericTexture. More...

void	setEnabled (bool a_enabled)
	This method enables or disables texture mapping. More...

bool	getEnabled () const
	This method returns true if the texture map is enabled, false otherwise. More...

Static Public Member Functions
static cTexture2dPtr	create ()
	Shared cTexture2d allocator. More...

Static Public Member Functions inherited from chai3d::cTexture1d
static cTexture1dPtr	create ()
	Shared cTexture1d allocator. More...

Static Public Member Functions inherited from chai3d::cGenericTexture
static cGenericTexturePtr	create ()
	Shared cGenericTexture allocator. More...

Protected Member Functions
virtual void	reset ()
	This method resets all internal variables. This function should be called only by constructors. More...

virtual void	update (cRenderOptions &a_options)
	This method updates this texture to GPU. More...

Protected Attributes
GLint	m_wrapModeT
	Texture wrap parameter along t (GL_REPEAT or GL_CLAMP). More...

Protected Attributes inherited from chai3d::cTexture1d
bool	m_deleteTextureFlag
	If true, texture bitmap needs to be deleted from GPU memory. More...

bool	m_updateTextureFlag
	If true, texture bitmap needs to be updated to GPU memory. More...

GLuint	m_textureID
	OpenGL texture ID number. More...

GLint	m_wrapModeS
	Texture wrap parameter along s (GL_REPEAT or GL_CLAMP). More...

GLint	m_magFunction
	Texture magnification function value. (GL_NEAREST or GL_LINEAR). More...

GLint	m_minFunction
	Texture minification function value. (GL_NEAREST or GL_LINEAR). More...

bool	m_useMipmaps
	If true, mipmaps are enabled. More...

bool	m_useSphericalMapping
	If true, spherical mapping is enable. More...

GLint	m_environmentMode
	OpenGL texture mode (GL_MODULATE, GL_DECAL, GL_BLEND, or GL_REPLACE). More...

GLenum	m_textureUnit
	Texture unit number. More...

GLint	m_magFunctionMipmapsOFF
	Texture magnification function when mipmapping is OFF. More...

GLint	m_minFunctionMipmapsOFF
	Texture minification function when mipmapping is OFF. More...

GLint	m_magFunctionMipmapsON
	Texture magnification function when mipmapping is ON. More...

GLint	m_minFunctionMipmapsON
	Texture minification function when mipmapping is ON. More...

Protected Attributes inherited from chai3d::cGenericTexture
bool	m_enabled
	If true, this texture is enabled, false otherwise. More...

Additional Inherited Members
Public Attributes inherited from chai3d::cTexture1d
cImagePtr	m_image
	Image object associated with texture (use this to get data about the texture itself). More...

cColorf	m_color
	Environmental color. More...

Detailed Description

This class implements a 2D texture map.

Constructor & Destructor Documentation

chai3d::cTexture2d::cTexture2d ( )

Constructor of cTexture2d.

chai3d::cTexture2d::~cTexture2d ( )

virtual

Destructor of cTexture2d.

Member Function Documentation

static cTexture2dPtr chai3d::cTexture2d::create ( )

inlinestatic

cTexture2dPtr chai3d::cTexture2d::copy ( )

This method creates a copy of itself.

Returns: Pointer to new object.

void chai3d::cTexture2d::renderInitialize ( cRenderOptions & a_options )

virtual

This method enables texturing and set this texture as the current texture.

Parameters

a_options Rendering options.

Reimplemented from chai3d::cTexture1d.

Reimplemented in chai3d::cTextureVideo, and chai3d::cTexture3d.

void chai3d::cTexture2d::renderFinalize ( cRenderOptions & a_options )

virtual

This method disable texture rendering once triangles have been rendered.

Parameters

a_options Rendering options.

Reimplemented from chai3d::cTexture1d.

Reimplemented in chai3d::cTexture3d.

void chai3d::cTexture2d::setWrapModeT ( const GLint & a_wrapModeT )

virtual

This method Ssts the wrap parameter for texture coordinate t to either GL_CLAMP or GL_REPEAT.

GL_CLAMP causes t coordinates to be clamped to the range [0,1] and is useful for preventing wrapping artifacts when mapping a single image onto an object.

GL_REPEAT causes the integer part of the t coordinate to be ignored; OpenGL uses only the fractional part, thereby creating a repeating pattern. Border texture elements are accessed only if wrapping is set to GL_CLAMP.

Parameters

a_wrapModeT value shall be either GL_REPEAT or GL_CLAMP.

GLint chai3d::cTexture2d::getWrapModeT ( ) const

inline

void chai3d::cTexture2d::reset ( )

protectedvirtual

This method resets all internal variables. This function should be called only by constructors.

Reimplemented from chai3d::cTexture1d.

Reimplemented in chai3d::cTexture3d.

void chai3d::cTexture2d::update ( cRenderOptions & a_options )

protectedvirtual

This method updates the texture from memory data to GPU.

Parameters

a_options Rendering options.

Reimplemented from chai3d::cTexture1d.

Reimplemented in chai3d::cTexture3d.

Member Data Documentation

GLint chai3d::cTexture2d::m_wrapModeT

protected
